From the big screen to your studio; film console DSP for your most demanding projects
The MPC Channel is an all-in-one signal processing suite for mixing and editing audio in post-production film. It is equipped with six essential mixing tools that use the same powerful DSP found in Harrison’s renowned MPC (Motion Picture Console) used in high end film studios around the world.
The processing sections can all be monitored simultaneously in one resizable window, so everything that's happening can be seen at-a-glance. Other useful features include rearrangeable signal flow, fully automatable parameters, and advanced RTA displays.
The MPC Channel is optimized for large format post-production sessions allowing 100’s of instances to be deployed without negatively affecting your CPU performance.
MPC Channel an invaluable tool that will take any post-production workflow to the next level.
Parametric 8-Band Equalizer with a wide range of RTA options
Pair of multi-pole Filters with various selectable shapes
2-Band De-Esser based on the X-Tool DSP found in Harrison MPC digital consoles
2-Band Denoiser for cleaning up unwanted background noise
Compressor with a variety of adjustable parameters and a selectable Program Dependent mode
Routing, Trim & Polarity section for re-arranging the order of signal flow, toggling Polarity, and adjusting input/output Trim

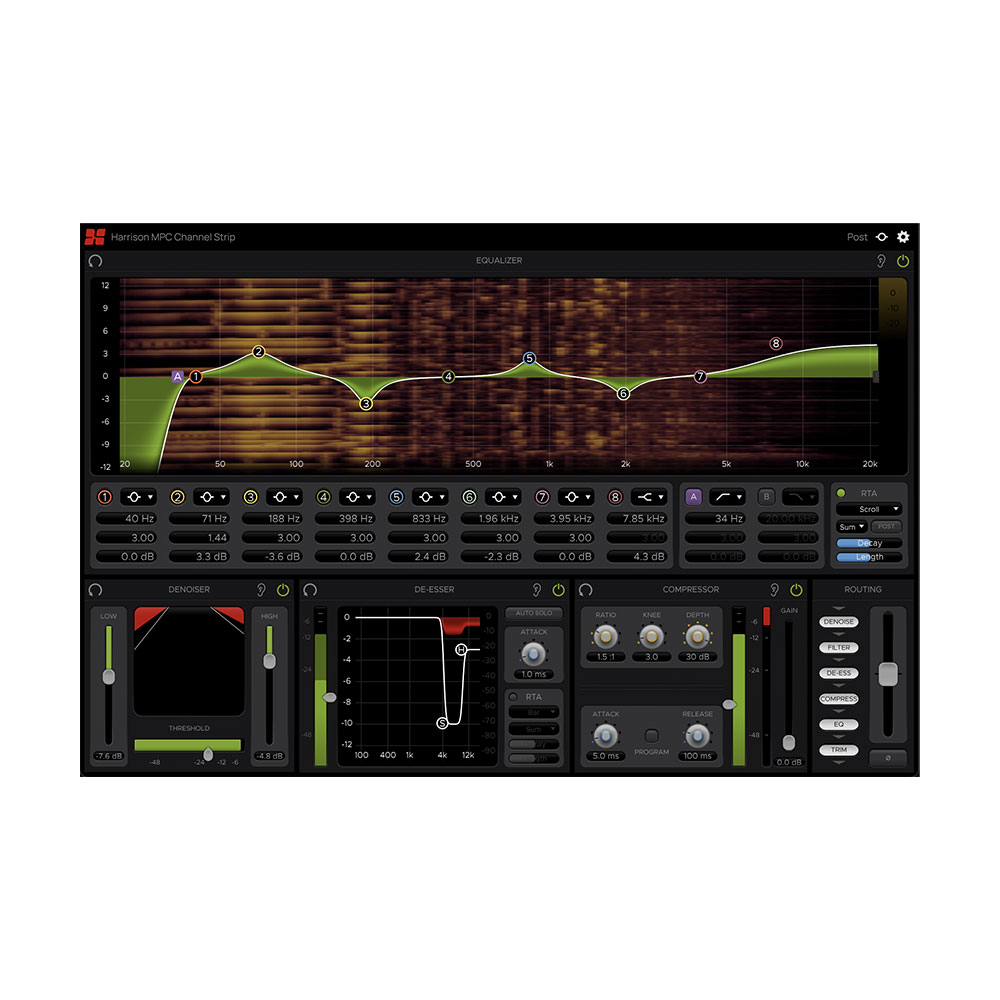

MPC Channel Strip in action
The MPC’s Equalizer module is a parametric 8-band EQ with an additional pair of filters and an optional RTA display. This module consists of 4 sections:
Graph: Shows a visual representation of the EQ curves over the RTA display
Band Control: Controls the parameters for each of the 8 bands
Filter Control: Controls the parameters for the high and low filters
RTA Control: Controls the RTA display
The Denoiser is optimized for processing speech. The cutoff frequencies of the high and low filters are preset to best accommodate the frequency range of the human voice and the envelope is set to match the rate of normal speech.
The Denoiser functions like an expander for frequencies outside the range of the human voice. The HIGH and LOW sliders control the maximum amount of Gain reduction applied to signals within each band’s respective Frequency range. The maximum Gain reduction set for each band will only be applied to signals below the Threshold. All Signal levels above the Threshold will be allowed to pass through with variable Gain reduction based on the dynamic characteristics of the signal.
Harrison’s renowned De-Esser algorithm is primarily used to attenuate harsh frequencies caused by sibilance in human speech.
The two circular markers on the graph display, labeled “S” and “H”, are the controls for the Ess and Hi bands (S = Ess, H = Hi). These controls can be dragged horizontally or vertically to set the Bandwidth and Depth of their respective bands. The low cutoff Frequency for the Ess band has a range of 200 Hz to 8 kHz, while the Hi band control has a range of 2 kHz to 12 kHz for taming any additional frequencies above that.
The MPC’s Compressor module is optimized for vocal compression, but its flexible controls allow it to meet a variety of other needs as well. Its components includes:
Ratio - with possible values from 1:1 to 100:1
Knee - with a possible values range of 1.0 to 30.0
Depth - with a possible values range from 0.1 ms to 100 ms
Attack - times range from 0.1 ms to 100 ms
Release - times range from 5 ms to 500 ms
Routing, Trim & Polarity
The order of signal flow between the six elements can be rearranged by dragging an element’s marker to its desired position along the signal chain, which flows from top to bottom. Dragging an item to another slot will swap the positions of the two items.
The Trim fader can adjust the Gain of the signal passing through it (-20 dB to +20 dB). This is also a routable item, so it can serve as an input or output Trim depending on its position in the signal chain.
The Polarity switch inverts the phase of the output waveform (flips it 180°) when selected.
The RTA is calculated using a Discrete Fourier Transform, which provides high resolution data even in lower frequency ranges. The Equalizer and De-Esser modules each have sections for controlling their RTA displays. The controls described here apply to the RTAs in both modules, unless noted otherwise.
